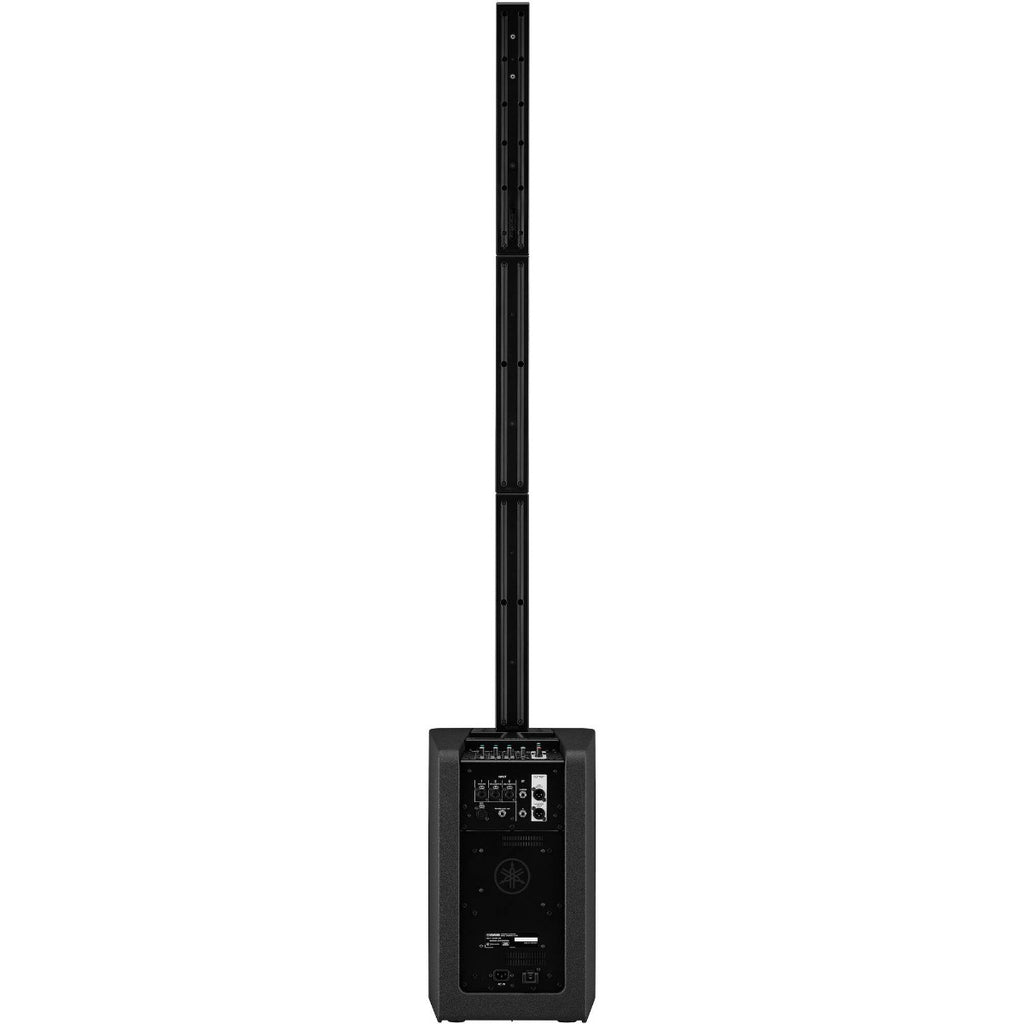

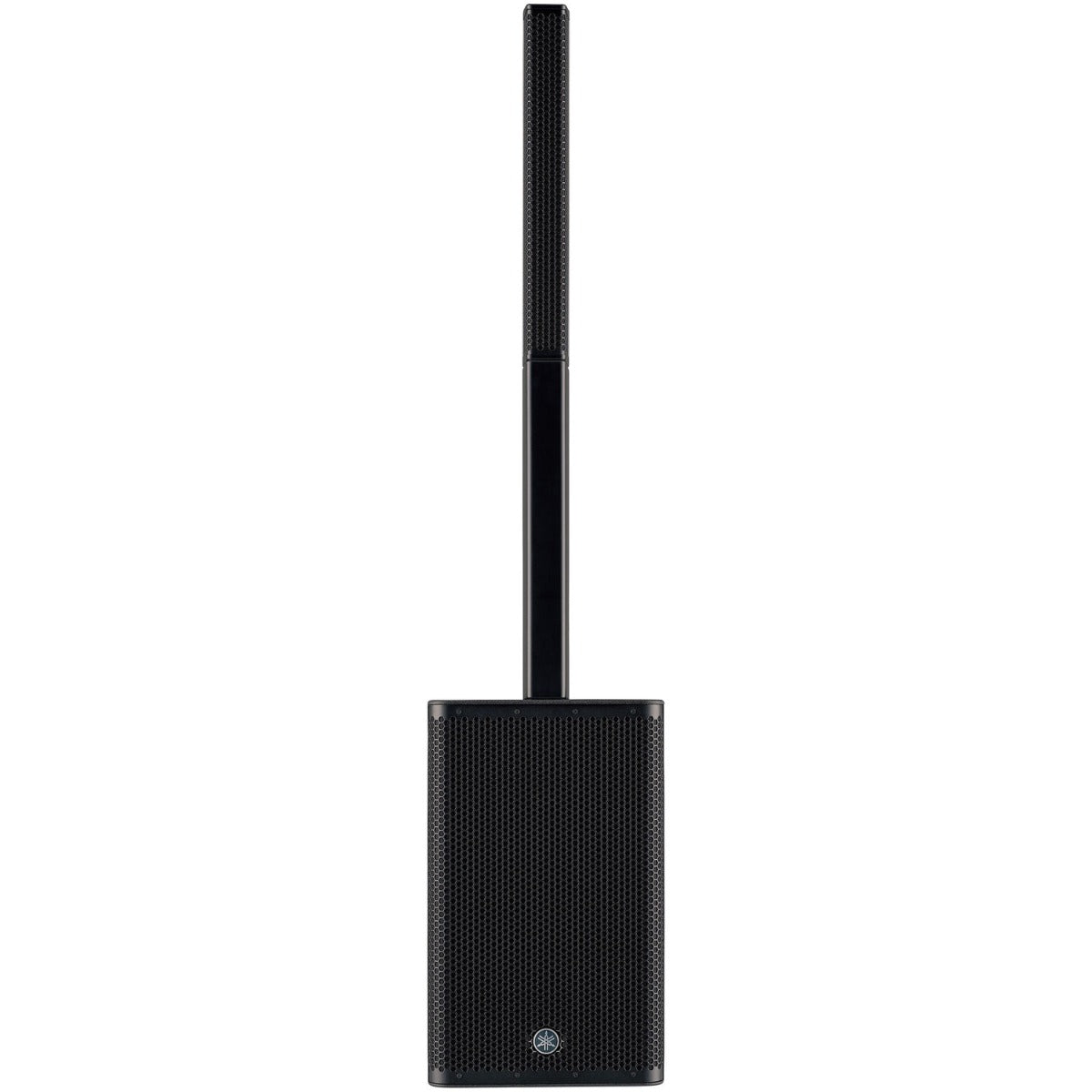

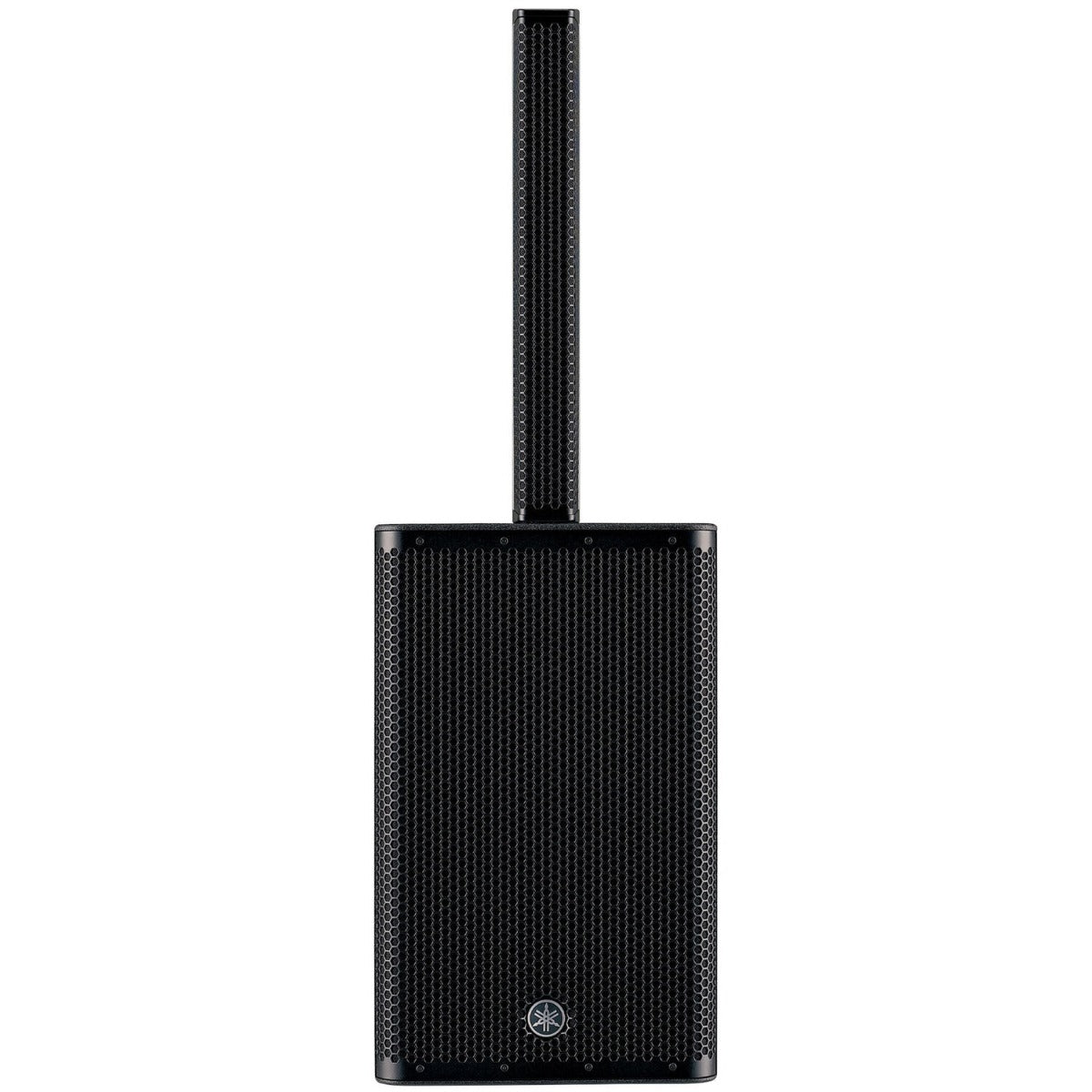

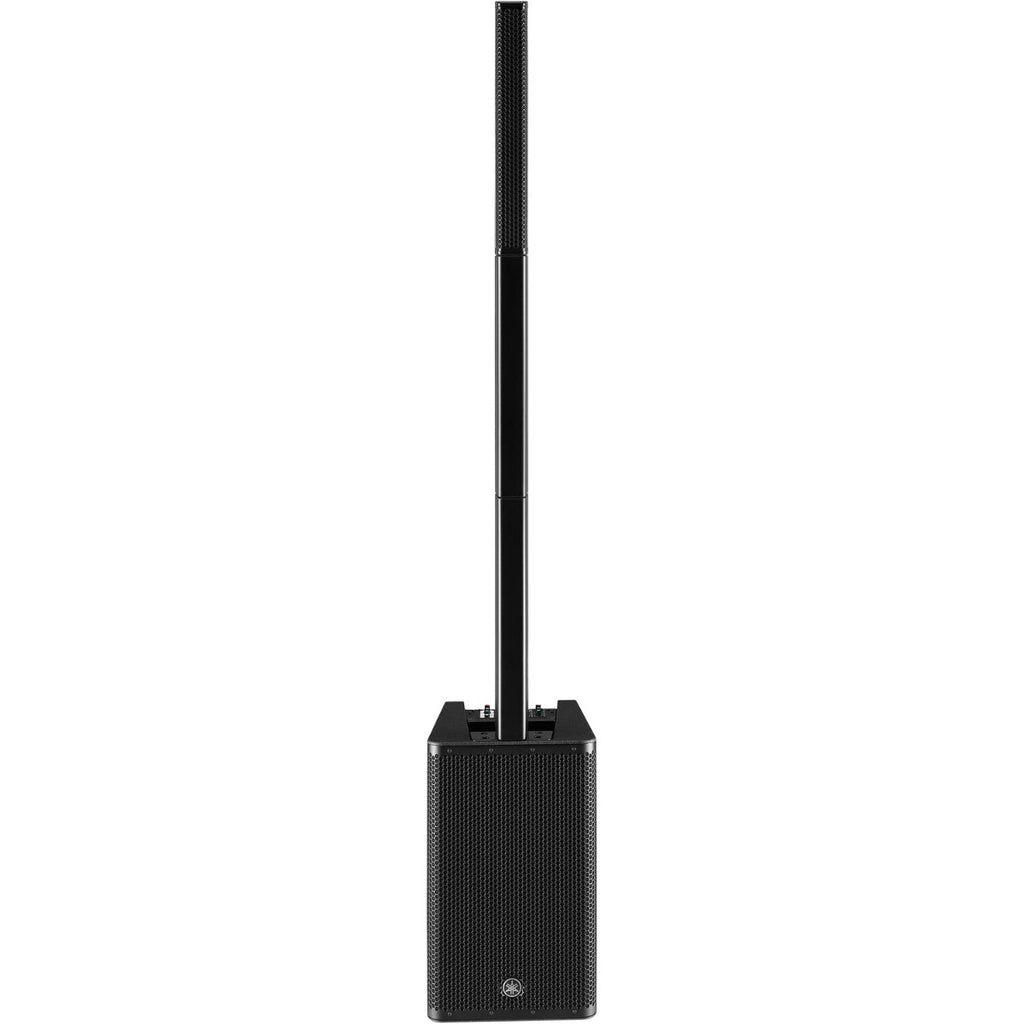

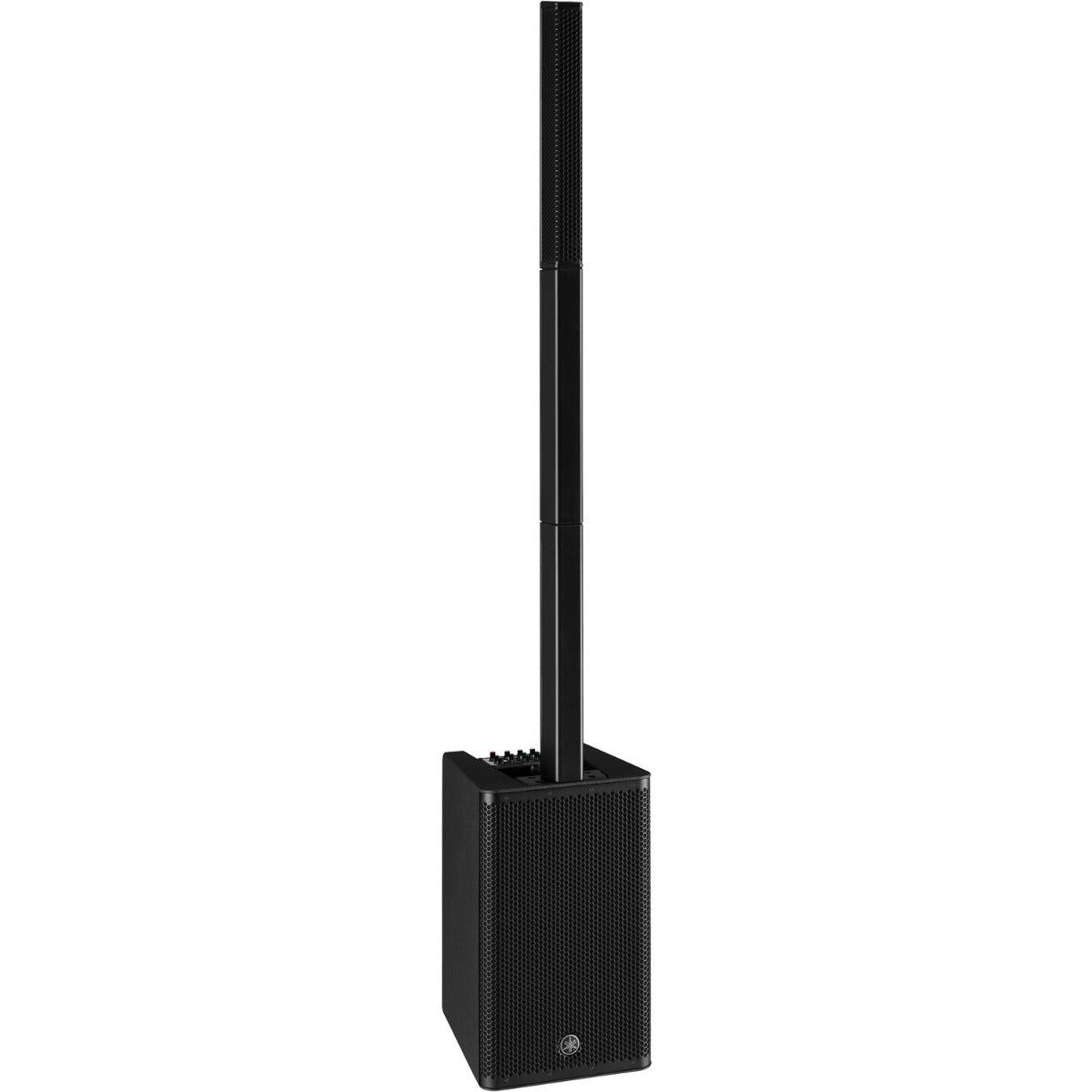

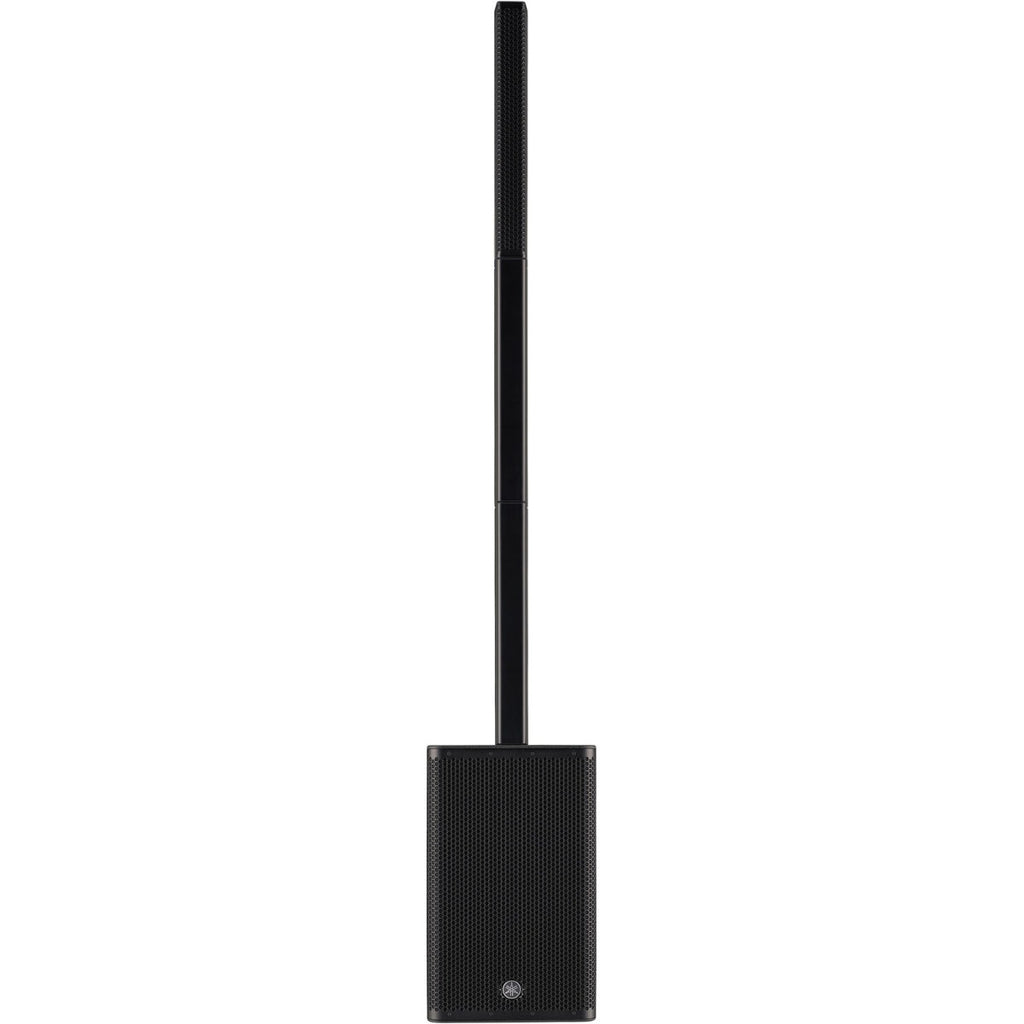

Yamaha Stagepas 1K MK2 – Portable Line Array PA with Built-In Digital Mixer

The Yamaha Stagepas 1K MK2 is a powerful, ultra-portable line array PA system designed for performers, DJs, presenters, and event professionals who need impressive coverage, deep bass, and fast setup. With a mixer-integrated subwoofer, modular J-curve line array, expanded Bluetooth control, and higher SPL than the original model, the MK2 delivers professional sound in a compact, mobile package.

Key Features

• 1,100W peak power: High-output Class-D amplifier with increased SPL for larger rooms and outdoor events.
• 9-unit J-curve line array: Wide horizontal coverage and long-throw clarity ideal for speech, vocals, and music.
• 12" subwoofer: Deep, punchy low-end in a compact base cabinet with integrated mixer.

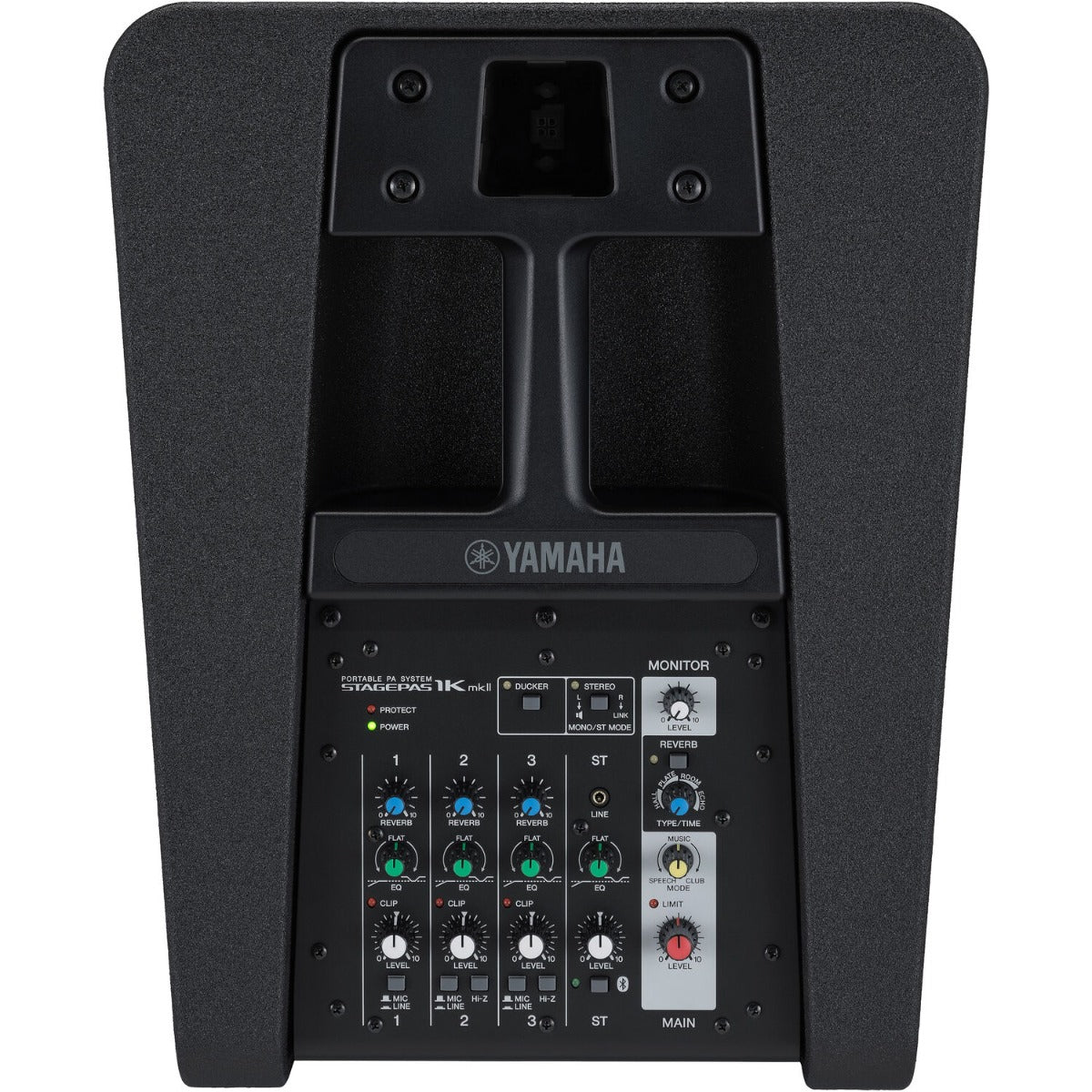

• Advanced digital mixer: Includes ducking, 1-knob EQ, multi-band EQ, and optimized MODE presets (Speech/Club/Music).
• Enhanced Bluetooth: Stream audio and use the STAGEPAS Controller app for full remote control of EQ, volume, and memory presets.
• Ultra-portable assembly: Lightweight column system packs into the sub for fast one-person setup.

Customer Benefits

The Stagepas 1K MK2 offers the output and coverage of a professional line-array system with the simplicity of a plug-and-play PA. The built-in mixer, remote control, and performance-ready presets ensure you get a polished, consistent sound at any gig without extra gear or complicated setup.

Quick Specs

• Power: 1,100W Class-D
• Subwoofer: 12" driver
• Array: 10 × 1.5" HF drivers (J-curve configuration)
• Max SPL: Higher than original Stagepas 1K (MK2 performance upgrade)
• Mixer: Digital mixer with ducking, 1-knob EQ, MODE presets, and 4-band PEQ via app
• Bluetooth: Audio streaming + remote control
• Weight: Approx. 23 kg (varies by region)
• Inputs: 3 × XLR/TRS combo (mic/line, Hi-Z on CH2–3), stereo channel with 2 × 6.35 mm jack (L/MONO, R) + 3.5 mm stereo mini, 1 × XLR link in
• Outputs: 1 × XLR link out, 1 × XLR monitor out

What’s in the Box

• Stagepas 1K MK2 subwoofer with integrated mixer
• Two-segment J-curve line array
• Spacer units
• Power cable
• User documentation

Use Cases / Ideal For

Singer-songwriters, bands, DJs, corporate events, outdoor performances, fitness instructors, weddings, mobile entertainers, and small to mid-sized venues.

Compatibility

Works with microphones, instruments, DJ controllers, laptops, media players, and Bluetooth devices. Fully controllable via the STAGEPAS Controller mobile app.

Pros & Cons

✅ Pros:

• Massive output for the size
• Full remote control with stage-ready app
• Quick 1-person setup
• Clear, wide line-array coverage and strong low end

⚠️ Cons:

• No battery operation (requires AC power)
• More powerful than needed for very small rooms

The Yamaha Stagepas 1K MK2 combines portability, power, and modern mixing features into a refined all-in-one PA solution—now available at Soundium.
